THE PROVEN DENTAL IMAGING SOLUTION

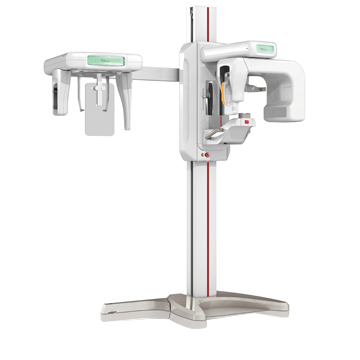

PaX-400C

THE PROVEN DENTAL IMAGING SOLUTION, PaX-400C

The First Step for Dental Diagnosis
  • Dual solution: digital panoramic + cephalometric
Outstanding & Stable Image Quality
  • LDCP(Low Dark Current Processing) logic
Various Capture Programs
  • Standard & optimal for dental diagnosis
Easy & Exact Positioning Support
  • 3 positioning beams
  • Head support
  • Convex mirror system
Compact & Simple Design
  • Space efficient


THE STANDARD DENTAL IMAGING SOLUTION

PaX-400C provides the most precise and high quality panoramic image by innovative Technology.

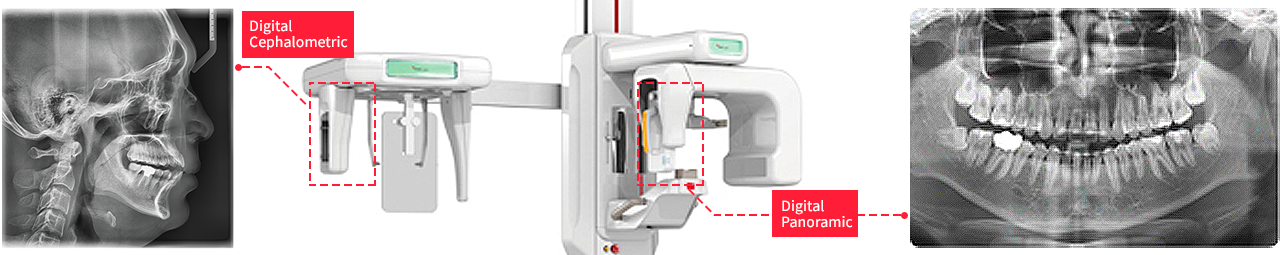

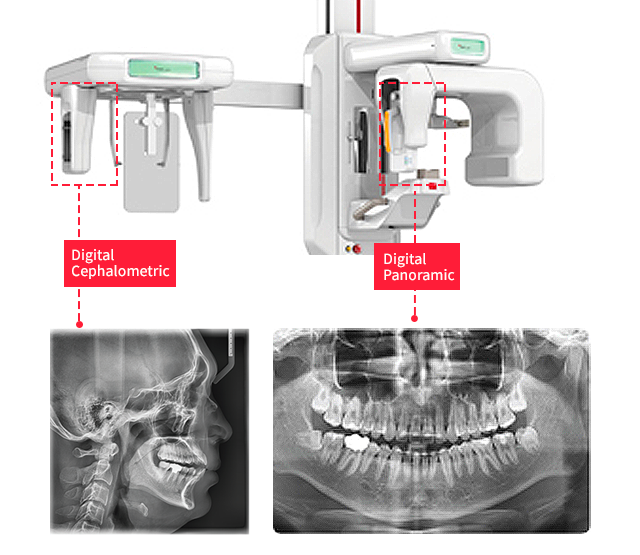

With One Digital Sensor, Pano & Ceph capture available

PaX-400C, the renowned and classical representation of VATECH digital imaging solution, always offers you stability & highly superior image quality. Furthermore, this efficient 2 in 1 system – Digital Panoramic & Cephalometric system – satisfies all your imaging needs for exact & precise diagnosis with the use of its diversified capture program.



SUPERIOR CEPHALOMETRIC IMAGE

Scan Type Cephalometric

PaX-400C Provides optimal images with an exclusively designed sensor for cephalometric diagnosis.



SPECIFICATION

 Exposure Time[sec]  Panoramic 13 sec[Standard Panoramic Adult]
 Cephalometric  15 sec[Latero-Lateral]
 Sensor Type  1multi-linear sensor for Pano and Ceph
 Tube Voltage  40-90 kV [adjustable by 1 kV]
 Focal Spot  0.5 x 0.5mm
 Power[Kw]  1.3Kw
 Weight[kg]  220kg
 Acquisition Area[mm]  Panoramic 146mm x 300mm
 Cephalometric 220mm x 300mm
 Gray Level  Linear sensor 4,096[12bit]
 Tube Current  2-10 mA [adjustable by 1 mA]
The specificaltions are subject to change without prior notice.

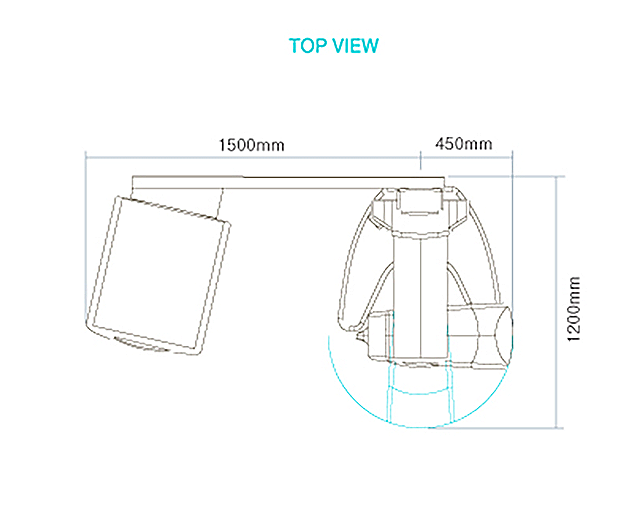

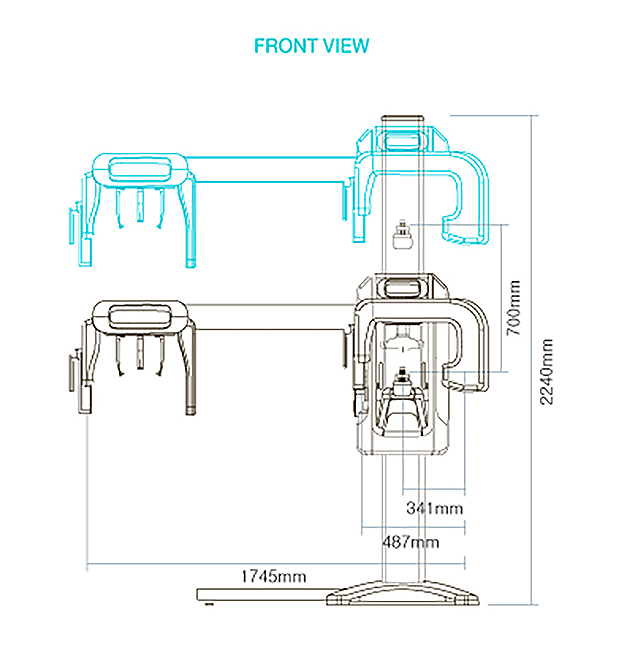

DIMENSIONS
