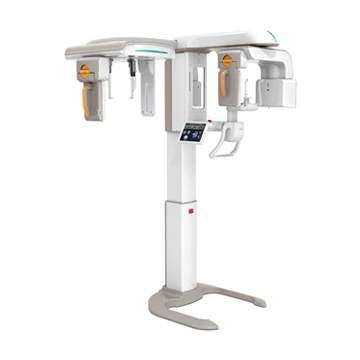

THE CONVENIENT FLEXIBLE SYSTEM

PaX-Flex3D

THE CONVENIENT FLEXIBLE SYSTEM,
PaX-Flex3D

Practical 3 in 1 System
  • CBCT, Real Panoramic, Cephalometric
Flexible & Simple Upgrade
  • System Upgrade: Panoramic to CBCT
  • FOV upgrade: 5X5, 8X5, 8X8, 12X8.5
Advanced Panoramic Imaging Technology
  • UHD
  • Auto Focusing


FLEXIBLE & SIMPLE UPGRADE:
Expand FOV DIAGNOSITIC AREA

PaX-Flex3D offers simple and convenient system upgrade.
By attaching the CBCT sensor on the sensor holder of the panoramic unit, a 3D Diagnostic image will be available to you instantly making it more affordable than ever before.



With this flexibility, simple & easy FOV upgrades from small FOV, 5x5cm or 8x5cm, to middle FOV, 8x8cm or 12x8.5cm are available.



OPTIMIZED PANORAMIC DIAGNOSIS

PaX-Flex3D Provides the most precise and high quality panoramic image.
Clear and sharp panoramic image brings you better diagnostics.
Enhanced details especially in the anterior and dental roots can be viewed.



Ultra HD (High Definition)

Ultra HD offers the exact image of caries without any distortion, especially in the lower area of enamel. Furthermore, you can precisely check the actual volume of pulp without magnification from the panoramic image. (optional)

Before
After


SUPERIOR CEPHALOMETRIC IMAGE



Scan type Cephalometric

PaX-Flex3D Provides optimal images with an exclusively designed sensor for cephalometric diagnosis.


LATERAL

Provide specialized high quality images to suit orthodontics and maxillofacial surgeries.

FULL LATERAL

Full lateral gives 30% larger images and the occipital area of the patient for comprehensive diagnosis. (optional)



PRODUCT CONFIGURATION

  Pano Ceph CT FOV
Pax-Flex P - - N/A
Pax-Flex PC -
Pax-Flex 3D P - 5x5
8x5 (5x5 / 8x5)
8x8(5x5/8x5/8x8)
12x8.5(5x5/8x5/8.5x8.5/12x8.5)
Pax-Flex 3D PC


SPECIFICATION

Function CBCT + Panaramoc + Cephalometric
FOV Size (cm) 5x5 : Single / Stitching (8.5x5)
8x5 : Multi (5x5, 8.5x5) / Stitching (12x5)
8x8 : Multi (5x5, 8x5, 8x8) / Stitching (12x8)
12x8.5 : Multi (5x5, 8x5, 8.5x5, 12x8.5)
Scan Time CTBT : 15 sec. (Standard) / 24 sec. (high)
Pano : 13.5 sec. (HD) / 10.1 sec. (Normal)
Ceph : 12.94 sec.
CBCT Spot CMOS Sensor
Focal Spot 0.5 mm
Generator Voltage CBCT : 50~90 kVp
Pano : 50~90 Kvp
Ceph : 60~90 kVp
Generator Current CBCT : 2~10 mA
Pano : 4~10 mA
Ceph : 4~1 0mA
Voxel Size 0.12~0.3 mm
Reconstruction Time Less than 90 sec.
Rotating Unit Scan Angle 360º
Patient Position Standing / Wheelchair accessible
Dimension [WxDxH mm(inch)] Pano+Ceph : 1945 (76.6) x 1535 (60.4) x 2328 (91.7)
Pano : 100 (39.4) x 1535 (60.4) x 2328 (91.6)
Weight Without Ceph : 185 kg (408 lbs)
With Ceph : 225 kg (496 lbs)
* The specificaltions are subject to change without prior notice.

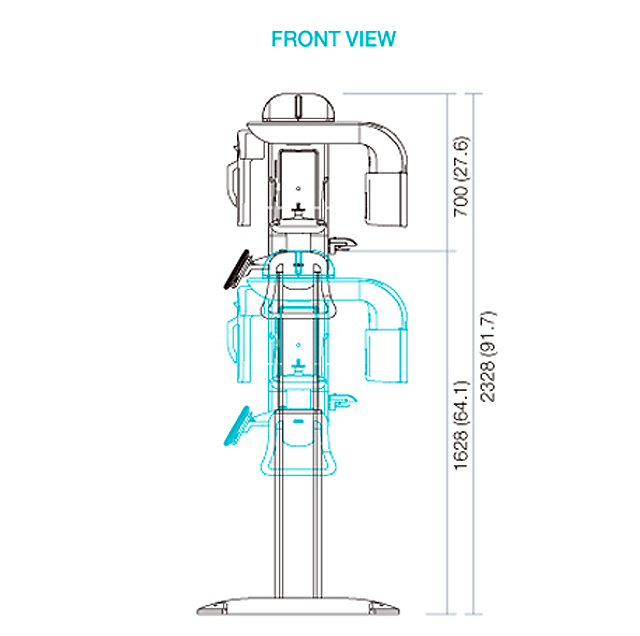

DIMENSION

Pano/CBCT
Pano/CBCT/Scan Ceph
