THE BEST SOLUTION WITH CBCT

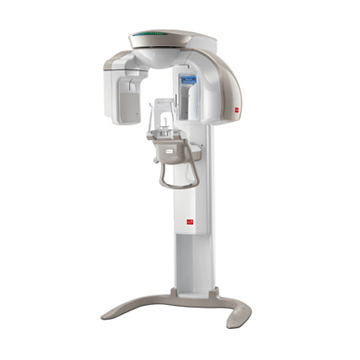

PaX-Duo3D

THE BEST SOLUTION WITH CBCT & PANORAMIC,
PaX-Duo3D

The Practical 2 in 1 System
  • CBCT + Real Panoramic
The Optimal FOV Size for Dental Diagnosis
  • Multi FOV 5X5, 8.5X5, 8.5X8.5, 12X8.5
Auto Switching Sensor System
  • Convenient and safe to operate
The Superior Panoramic Image
  • Auto Focusing
  • Ultra HD


THE MOST PRACTICAL FOV SIZE FOR PATIENTS’ TREATMENT PLAN,
PaX-Duo3D

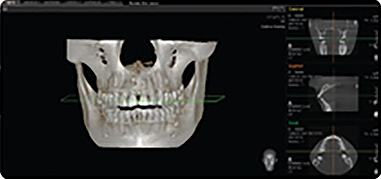

PaX-Duo3D provides multi FOV sizes (from 5x5 to 12x8.5) to meet customers’ various demands. Accordingly, it ensures that only the region of interest is captured based on the diagnostic purposes.
With the small FOV, you could capture the right part of the dental structure reducing X-ray dose to the patient and eliminating the unnecessary parts.
In addition, with the larger FOV sizes, you are able to perform oral and implant surgery providing clear and right-size images



FOV 5x5

FOV 8x8
FOV 12x8.5


OPTIMIZED PANORAMIC DIAGNOSIS

PaX-Duo3D Provides the most precise and high quality panoramic image.
Clear and sharp panoramic image brings you better diagnostics.
Enhanced details especially in the anterior and dental roots can be viewed.



Auto-Switching between Panoramic & CBCT Sensors

PaX-Duo3D provides the most precise and high quality panoramic image by innovative imaging process and accumulated experience in dental imaging from VATECH. It improves your diagnostic accuracy with increased treatment planning and patient satisfaction.

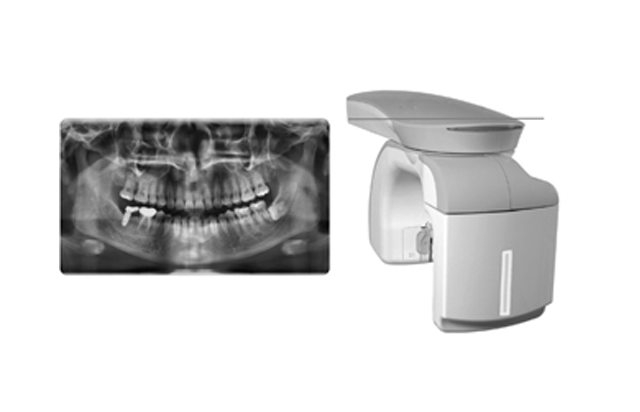

Panoramic

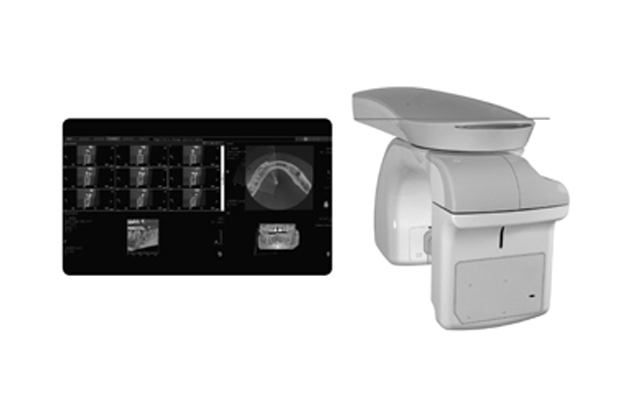

CBCT


Auto-Focusing Technology (Optional)

PaX-Duo3D is equipped with a unique panoramic imaging process Auto Focusing Technology.
The ‘Auto-Focusing’ function optimizes a radiographic image by compensating an incorrect patient positioning and untypical patient arches without the need for multi radiographic scans.

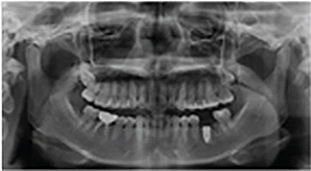

Case 1

Before
After

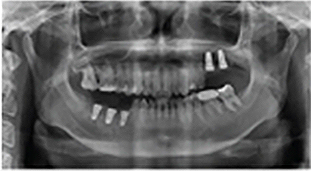

Case 2

Before
After


SPECIFICATION

Function CBCT + Panoramic
FOV Size (cm) 8x8 : Multi[5x5, 8x5, 8x8]
12x8.5 : Multi[5x5, 8x5, 8.5x8.5, 12x8.5]
Scan Time CBCT : 15sec. [Standard] / 24sec. [High]
Pano : 13.5sec. [HD]/ 10.1sec. [Normal]
CBCT Sensor CMOS Sensor
Focal Spot 0.5mm
Generator Voltage CBCT : 50~90 kVp
Pano : 50~90 Kvp
Generator Current CBCT : 2~10 mA
Pano : 4~10 mA
Voxel Size 0.12~0.3 mm
Reconstruction Time Less than 90 sec.
Rotating Unit Scan Angel 360°
Patient Position Standing / Wheel-chair accessible
Dimension
[W x D x Hmm(inch)]
1070[42.1]x 1570[61.8]x 2346[92.4]
Weight 220 kg [485 lbs]
The specificaltions are subject to change without prior notice.

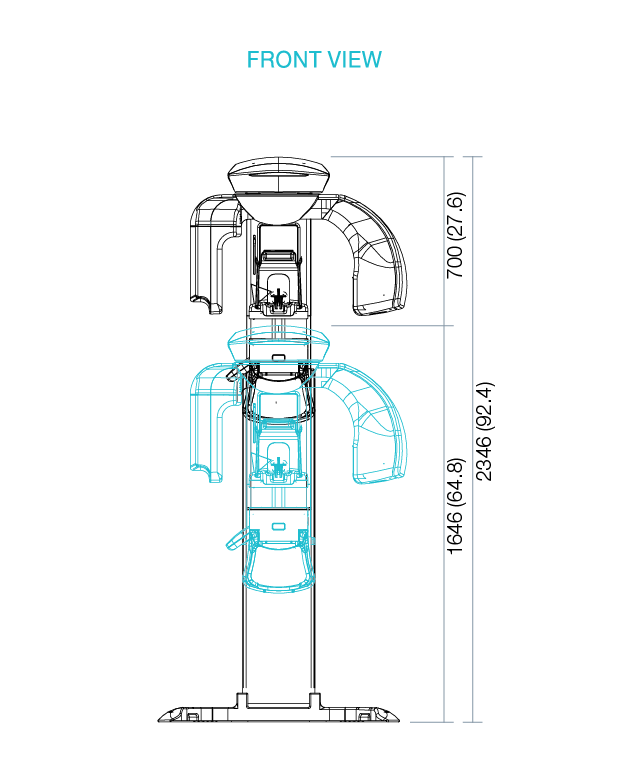

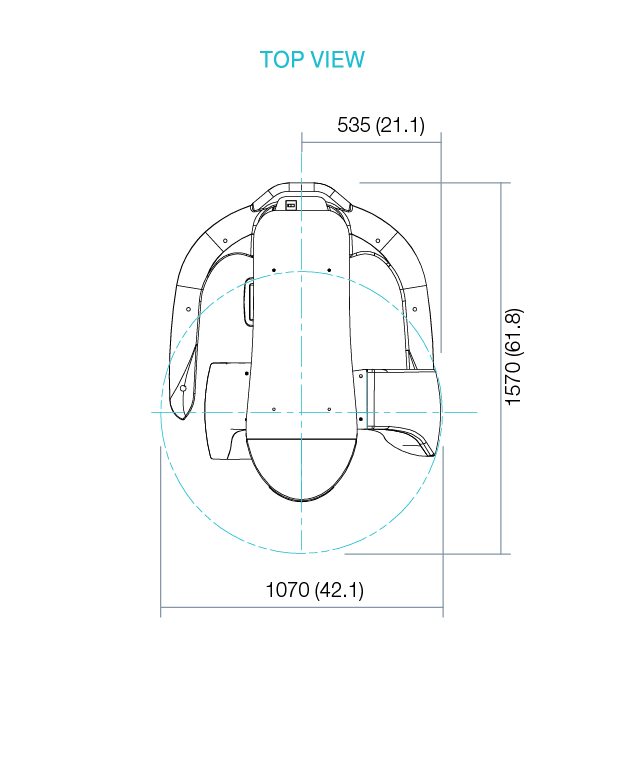

DIMENSIONS

Pano/CBCT
