YOUR FIRST PARTNER FOR 3D DIAGNOSIS

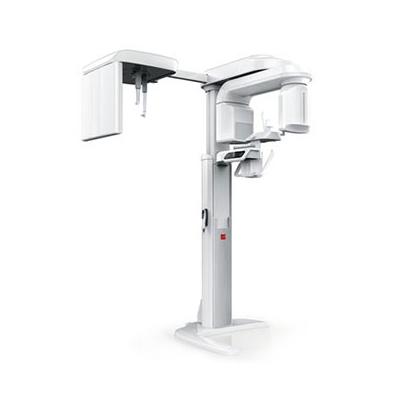

PaX-i3D

YOUR FIRST PARTNER FOR 3D DIAGNOSIS,
PaX-i3D

Optimal FOV Sizes for 3D Diagnosis
  • Increase your diagnosis and treatment accuracy.
  • Multi FOV sizes range from 5x5 to 12x9
Wide Range of Ceph Modes
  • Scan Type: LAT / Full LAT
  • One Shot Type: Small / Medium / Large
Magic PAN
  • It brings you the best optimized panoramic image.
  • Magic PAN applies to all areas of the image.


POWERFUL DIAGNOSTIC VALUE WITH 3D IMAGES

PaX-i3D provides 4 multi FOV sizes ranging from 5x5 to 12x9.
By selecting the appropriate FOV size, you can have the optimum image for your diagnostic needs reducing unnecessary X-ray radiation for patients.


FOV 5X5

5X5 images are useful for specific area diagnosis with minimum X-ray exposure for patients, It can especially increase the accuracy of endodontic diagnosis by exactly checking the amount or root canals and abnormal root canal shapes such as C-shapes that are difficult to check using 2D X-ray system.

FOV 8X5

8X5 images can provide more extended oral information on maxillary or mandibular areas. An accurate treatment plan can be established by taking into account the major anatomical structures like mandibular nerve, mental foramen or maxillary sinus.

FOV 8X8

8X5 images can provide more extended oral information on maxillary or mandibular areas. An accurate treatment plan can be established by taking into account the major anatomical structures like mandibular nerve, mental foramen or maxillary sinus.

FOV 12X9

12X9 images can provide the most optimal information for oral diagnosis fully covering both maxillary and mandibular structures including the 3rd molar region in a single scan. It is suitable for most oral surgery cases as well as multiple implant surgery.



PROFESSIONAL DIAGNOSTIC VALUE WITH
PANORAMIC IMAGES

PaX-i3D provides the most precise and high quality panoramic image. Clear and sharp panoramic image brings you better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.



MAGIC PAN

MAGIC PAN creates a more superb panorama image.
It is acquired through the elimination of distorted and blurred images caused by improper patient positioning (Optional).



Focused image is reorganized throughout the whole dental arch and the image quality can be increased.
The image becomes clearer especially in the incisor and canine region, TMJ areas and root canal.

NORMAL PAN
MAGIC PAN

Focused image is reorganized throughout the whole dental arch and the image quality can be increased.
The image becomes clearer especially in the incisor and canine region, TMJ areas and root canal.



PROFESSIONAL DIAGNOSTIC VALUE WITH CEPHALOMETRIC IMAGES

PaX-i3D Provides optimal images with an exclusively designed sensor for cephalometric diagnosis.



Scan type Cephalometric

Scan type cephalometric offers two image sizes, LAT and FULL LAT, you can choose one of them based on the purposes of your diagnostic needs.

LATERAL

Provide specialized high quality images to suit orthodontics and maxillofacial surgeries.

FULL LATERAL

Full lateral gives 30% larger images and the occipital area of the patient for comprehensive diagnosis. (optional)



OneShot type Cephalometric

Three different ceph image sizes reduce unnecessary X-ray dosage and scans the ideal area of cranial anatomy for your diagnosis and treatment planning.

LATERAL

SMALL 20x20cm (8x8")
MEDIUM 23x35cm (9x10")
SMALL 20x20cm (8x8")


OS(One Shot Standard)





OP(One Shot Premium)

PA
Carpus
SMV (Submentovertex)


PRODUCT CONFIGURATION

  CBCT PANO CEPH
SCAN ONE SHOT
Pax-i3D - -
Pax-i3D SC -
PaX-i3D OP -


SPECIFICATION

Function  Pano + CBCT + Ceph
CT - FOV Size(cm)  8X8 : Multi [5X5 / 8X5 / 8X8]
12X9 : Multi [5X5 / 8X5 / 8X8 / 12X9]
Voxel Size  5X5 : 0.08mm / 0.12mm,
8X5, 8X8, 12X9 : 0.12mm / 0.20mm
12X9 : 0.20mm / 0.30mm
Scan Time  Pano : HD 13.5 sec (Normal 10.1 sec)
Scan Ceph : 12.9 sec
One Shot Ceph : 0.9 sec
CBCT : Standard 15 sec / High 24 sec
Ceph FOV Size SC  21X23cm (8.3X9.1") [LAT,PA,SMV,Waters View,Carpus]
27X23cm (10.6X9.1") [Full LAT]
 OP  20X20cm (8X8")
23X25cm (9X10")
30X25cm (12X10")
Gray Scale  14 bit
Patient Position  Standing
Tube Voltage/Current  50-90 kVp / 4 - 10 mA
The specifications are subject to change without prior notice.


DIMENSIONS

Pano/CBCT
Pano/CBCT/ScanCeph
Pano/CBCT/OneShotCeph
