DENTAL PIONEER

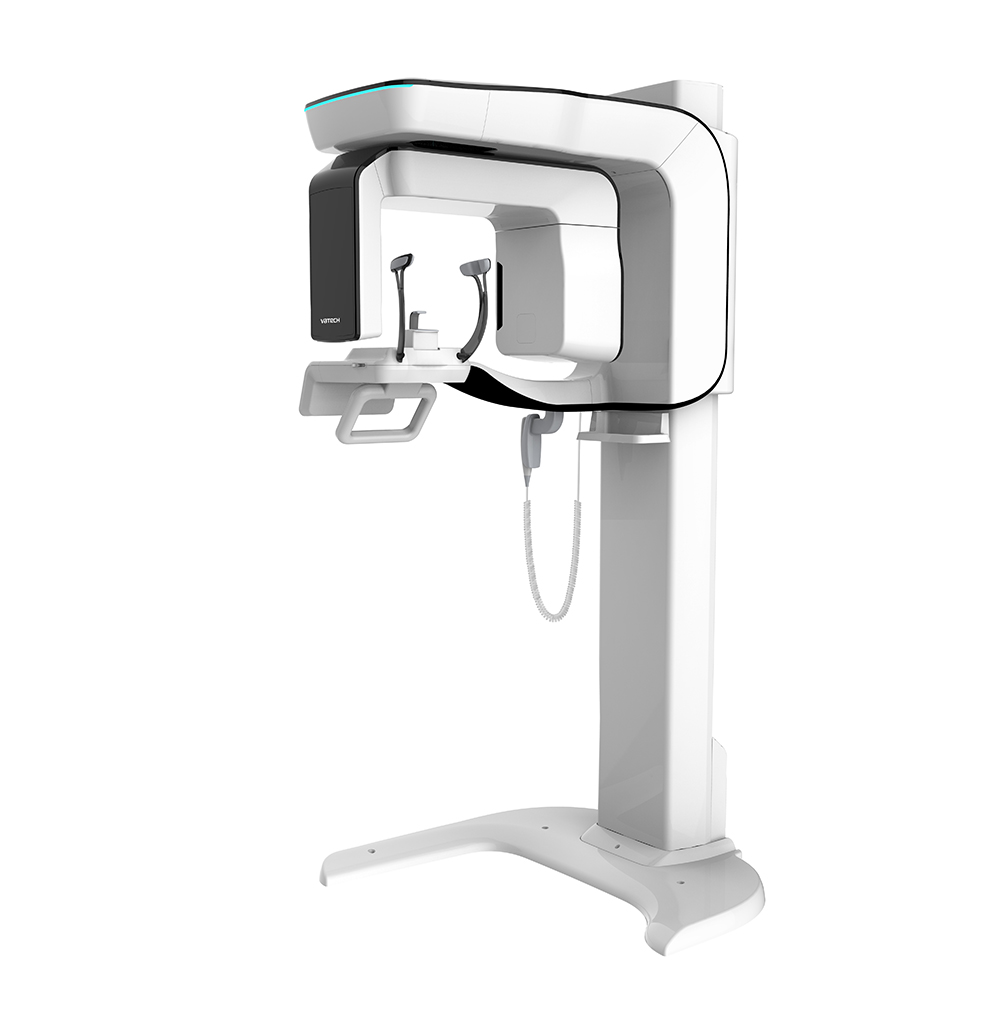

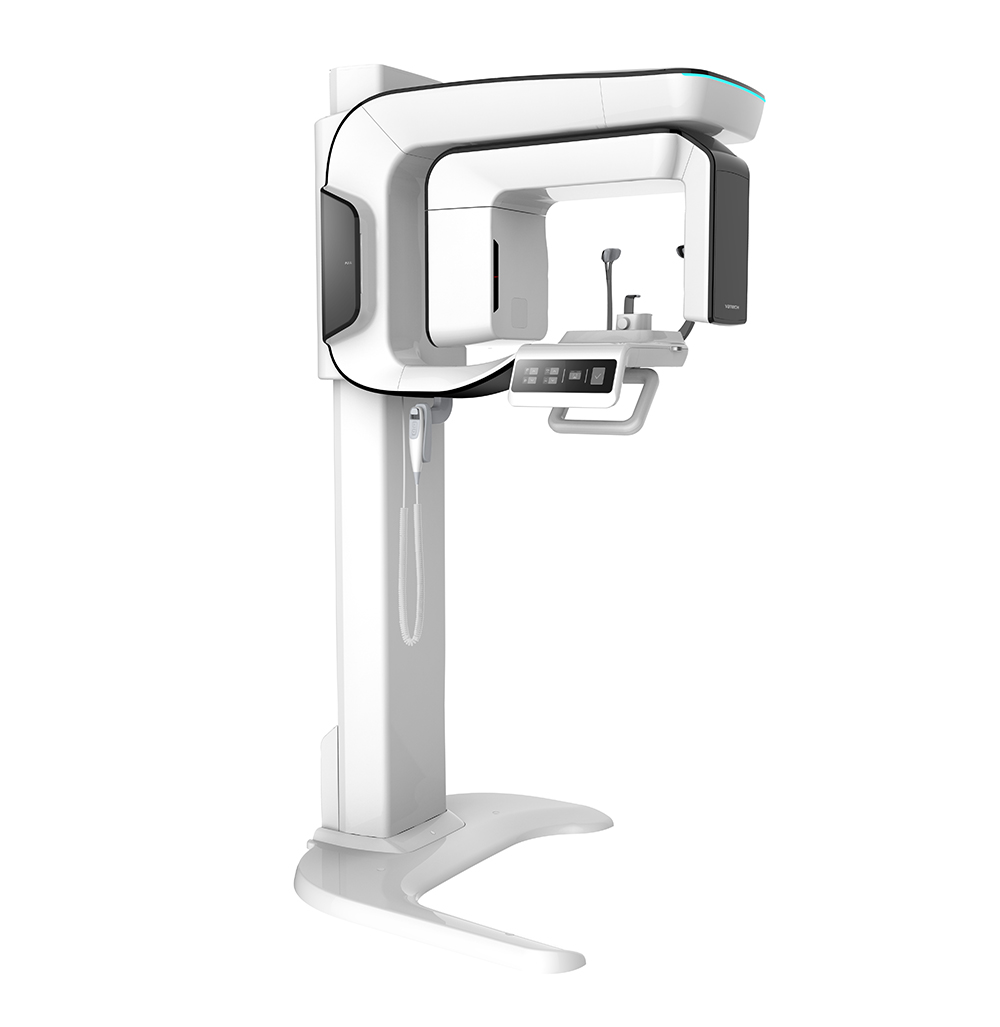

PaX-i3D Smart

THE PREMIUM CHOICE FOR IMPLANTOLOGIST,
PaX-i3D SMART



1 Scan, 2 Images

One scan with a PaX-i3D Smart gives you not just a CT image but also an Auto Pano image. This means, patients who require both images do not need to undergo two X-ray scans. Also CT and Auto Pano images are displayed within the One Viewer feature.



Practical 3 in 1 System

CBCT(with Auto Pano), Panoramic, Cephalometric



SMART Innovation for Low Dose

  • 1 Scan, 2 Images
  • Low Dose and High Image Quality


SMART Innovation for Accurate Diagnosis

  • Anatomical FOV 12x9
  • ART-V
ART-V Off
ART-V Off


Anatomical FOV, 12x9

The innovative FOV of the PaX-i3D Smart provides an arch-shaped volume, which shows a wider view of dentition compared to other devices of the same FOV. Normally, a FOV 10x8.5 image shows tooth #8. However, when the tooth is lying on its side, there is a high possibility that the tooth will be cut out of the image. The "arch-shaped volume" eliminates this possibility and shows the hidden dentition area.



ART-V (Artifact Reduction Technology of VATECH)

The innovative FOV of the PaX-i3D Smart provides an arch-shaped volume, which shows a wider view of dentition campared to other devices of the same FOV. Normally, a FOV 10x8.5 image shows tooth #8. However, when the tooth is lying on its side, there is a high possibility that the tooth will be cut out of the image. The "arch-shaped volume" eliminates this possibility and shows the hidden dentition area.

Same words, but different meaning

Metal artifact hinders visualization and naturally reduces diagnostic confidence

This picture is fore illustration purposes only.


PROFESSIONAL DIAGNOSTIC VALUE WITH PANORAMIC IMAGES
PANORAMIC IMAGES

PaX-i3D Smart provides the most precise and high quality panoramic image. Clear and sharp panoramic image brings you better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.



MAGIC PAN

MAGIC PAN creates a more superb panorama image. It is acquired through the elimination of distorted and blurred images caused by improper patient positioning (Optional).



Focused image is reorganized throughout the whole dental arch and the image quality can be increased. The image becomes clearer especially in the incisor and canine region, TMJ areas and root canal.

Focused image is reorganized throughout the whole dental arch and the image quality can be increased. The image becomes clearer especially in the incisor and canine region, TMJ areas and root canal.



PROFESSIONAL DIAGNOSTIC VALUE WITH
CEPHALOMETRIC IMAGES

PaX-i3D Smart Provides optimal images with an exclusively designed sensor for cephalometric diagnosis.



Scan type Cephalometric

Scan type cephalometric offers two image sizes, LAT and FULL LAT, you can choose one of them based on the purposes of your diagnostic needs.

LATERAL FULL LATERAL

Provide specialized high quality images to suit Full lateral gives 30% larger images and the occipital orthodontics and maxillofacial surgeries' area of the patient for comprehensive diagnosis (optional).



OneShot type Cephalometric

Three different ceph image sizes reduce unnecessary X-ray dosage and scan the ideal area of cranial anatomy for your diagnosis and treatment planning.

LATERAL

SMALL 20x20cm (8x8")
MEDIUM 23x35cm (9x10")
SMALL 20x20cm (8x8")
PA
Carpus
SMV (Submentovertex)

PRODUCT CONFIGURATION

  CBCT PANO CEPH
SCAN ONE SHOT
PaX-i3D Smart - -
Pax-i3D Smart SC -
PaX-i3D Smart OP -


SPECIFICATION

Function  CT(with Auto Pano) + Pano + Ceph
Focal Spot  0.5mm
CT - FOV Size(cm)  10X8.5 / 10X7
Voxel Size  0.2mm / 0.3mm
Scan Time CT  18.2sec
Pano  13.6sec / 7sec [Option with Mageic PAN]
Ceph  Scan : 12.9sec, One-Shot: 0.7sec
Gray Scale 14bit
Tube Voltage/Current 50-90 kVp / 4 - 16 mA

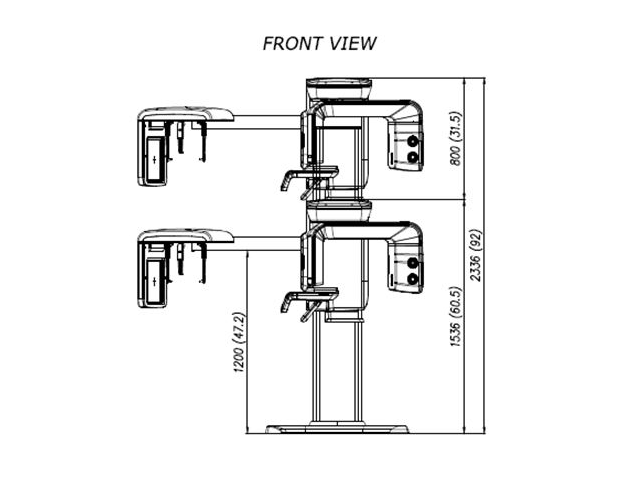

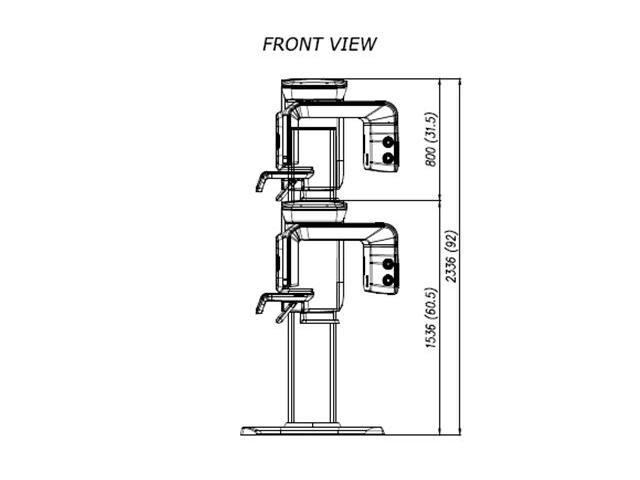

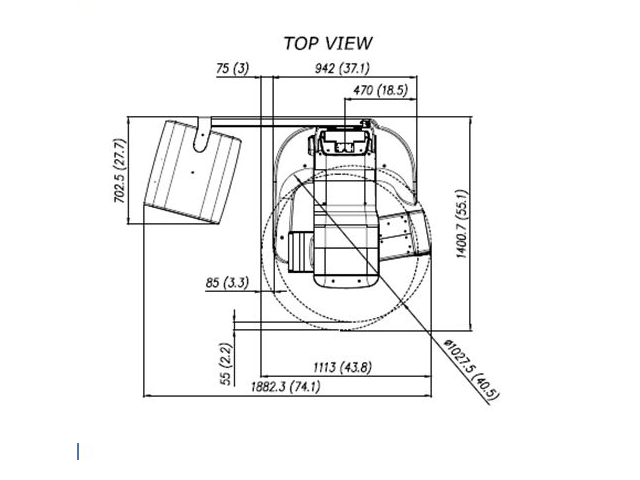

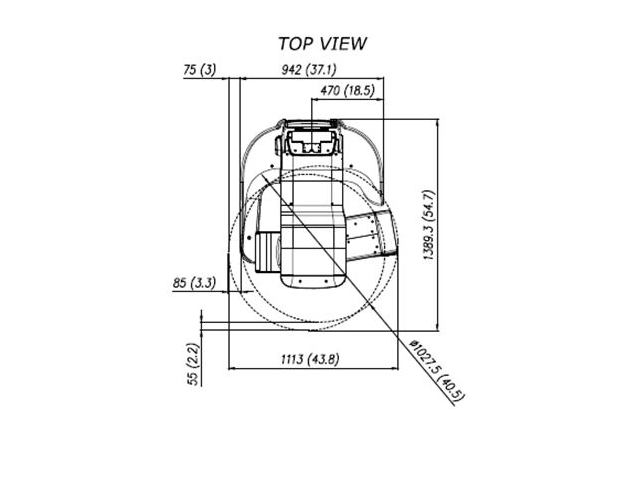

DIMENSIONS

Pano / CBCT
Pano / CBCT / OneShotCeph
Pano / CBCT / ScanCeph
